2026 Guide: 7 Critical Things to Know Before Printing with Carbon Fiber Filament

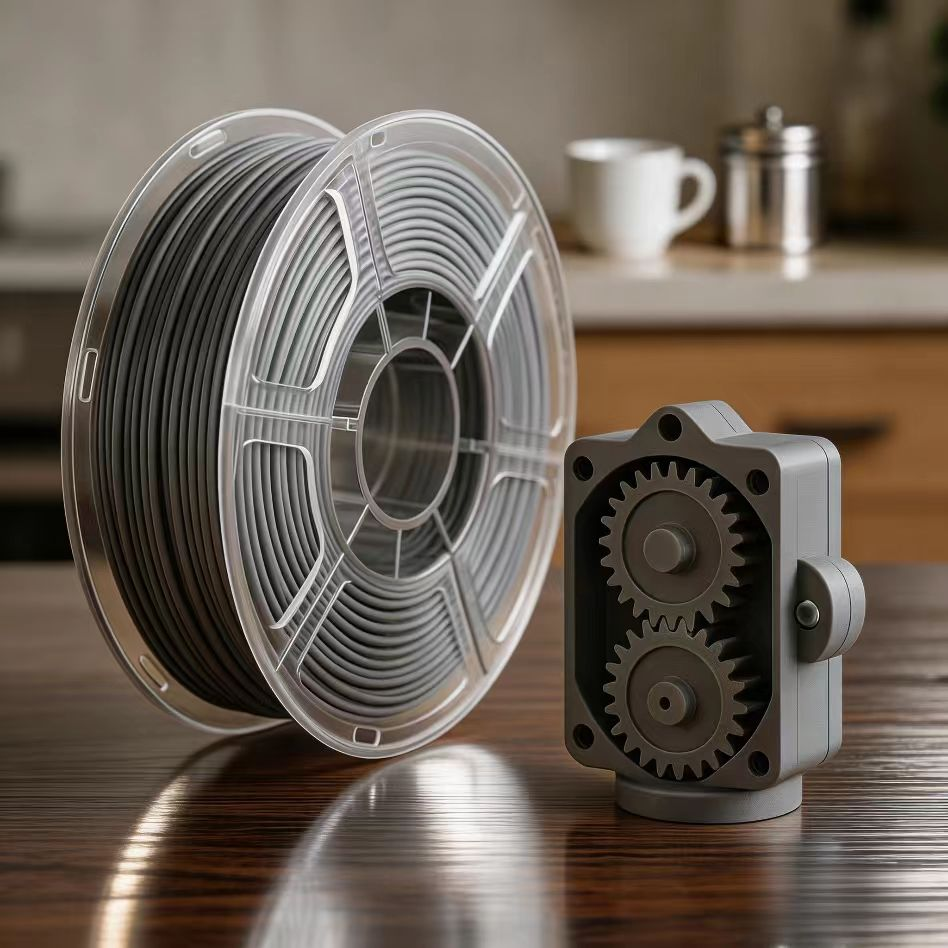

carbon fiber filament spool with 3D printed gearbox part printed with the material
This carbon fiber PETG filament spool and the 3D printed gearbox demonstrate the material's ability to produce high-precision, rigid functional parts for industrial applications.

By SSSray Materials Team | March 30, 2026 · 12 min read

Abstract

If you’ve only ever printed with standard PLA or PETG, switching to carbon fiber filament can feel like stepping into a completely different world. The material delivers the kind of strength and stiffness that once required machined aluminum—yet it comes with several quirks you simply won’t encounter with basic thermoplastics.

In this guide, we break down the 7 non-negotiable things you need to get right before printing with carbon fiber filament. From nozzle upgrades and drying protocols to optimized print settings, every recommendation is based on real-world lessons we’ve learned while supporting hundreds of industrial customers in 2026.

Key Takeaways

  • Carbon fiber filament is abrasive. You need a hardened steel nozzle to prevent rapid wear that ruins print quality.
  • Nylon-based carbon fiber filaments require mandatory drying—no exceptions. We’ve seen too many customers skip this step and waste an entire spool.
  • The right print settings cut failure rates by up to 80% and boost layer adhesion by roughly 25%, often just by raising the nozzle temperature 5–10 °C.
  • Proper moisture-controlled storage can extend shelf life by 12+ months, even for bulk industrial inventory.
  • The upfront premium pays for itself in about 3 months thanks to longer part lifespans and fewer replacements.
  • You don’t need a $10k printer. Most standard desktop machines work fine—just swap in a $25 nozzle.
  • Custom formulations can be tailored to your exact application, so you never have to settle for one-size-fits-all materials.

Table of Contents

  1. Why Carbon Fiber Filament Is Different From Standard Filaments
  2. The #1 Hardware Upgrade: Hardened Steel Nozzles
  3. Mastering Carbon Fiber Filament Settings for Perfect Prints
  4. Why Drying Carbon Fiber Nylon Filament Is Non-Negotiable
  5. Solving Common Problems When Printing with Carbon Fiber Filament
  6. Filament Storage Guide for Industrial Use
  7. Total Cost of Ownership: Is Carbon Fiber Filament Worth the Investment?
  8. Frequently Asked Questions

1. Why Carbon Fiber Filament Is Different From Standard Filaments

If you’ve been printing with standard PLA or PETG for years, it’s natural to assume that carbon fiber filament follows the same rules. However, that assumption is the single biggest mistake we see new users make.

Carbon fiber filament is not simply “colored plastic.” Instead, it’s a composite material: chopped carbon fibers—each one roughly 10× stronger than steel by weight—are blended into a polymer base such as PLA, PETG, or Nylon. Those tiny fibers lock the polymer matrix in place, which cuts shrinkage by up to 70% and boosts stiffness by approximately 3×.

On the other hand, those same fibers are also the source of nearly every challenge you’ll encounter. Understanding why requires a quick look at the material science.

The Material Science Behind the Abrasion

A 2025 study from Politecnico di Torino found that chopped carbon fibers measure approximately 6.5 on the Mohs hardness scale. By comparison, brass—the most common nozzle material—sits at only about 3.0.

In practical terms, the carbon fibers are literally harder than the nozzle. As a result, every time you extrude filament, those fibers act like fine sandpaper on the inner bore. Over time, the orifice diameter grows, extrusion becomes inconsistent, and print quality deteriorates.

This is precisely why printing carbon fiber filament through a standard brass nozzle forces you to replace that nozzle every 0.5–1 kg of material—an expensive and frustrating cycle.

2. The #1 Hardware Upgrade: Hardened Steel Nozzles for Carbon Fiber Filament

Given the abrasion issue described above, the solution is straightforward: switch to a hardened steel nozzle.

Hardened steel registers around 7.5 on the Mohs scale, which means it’s harder than the carbon fibers themselves. Consequently, the fibers can no longer sand away the nozzle bore, and a single nozzle can last through 80–100 kg of filament—roughly 100× longer than brass.

Can You Print Carbon Fiber Filament with a Brass Nozzle?

Technically, yes. Realistically, it’s not worth it—even for a small one-off part. To illustrate, one of our customers last month attempted to print a 0.2 kg CF-Nylon prototype with a brass nozzle. Halfway through, the nozzle wore out, the print failed, and he ended up buying a replacement nozzle anyway. In the end, he spent more than if he had simply started with a hardened steel nozzle.

Nozzle Material Wear Comparison

The table below offers a head-to-head comparison of the most common nozzle materials when used specifically with abrasive carbon fiber filament:

Nozzle Material Mohs Hardness Typical Lifespan (CF) Cost / Nozzle Cost / 100 kg CF
Brass 3.0 0.5–1 kg $5 $500–$1,000
Stainless Steel 5.5 10–15 kg $15 $100–$150
Hardened Steel ✔ 7.5 80–100 kg $25 $25
Hardened Tool Steel 8.0 200+ kg $40 $20

The numbers speak for themselves. Over 100 kg of carbon fiber filament, brass nozzles can cost up to $1,000, while a single hardened steel nozzle costs just $25—a 40× difference. Moreover, that figure doesn’t even account for the cost of failed prints caused by mid-print nozzle wear.

Even if you’re only planning to print 5 kg, you’d burn through 5 brass nozzles at $25 total—the exact same price as one hardened steel nozzle that will last 20× longer. In short, there is simply no downside to upgrading.

3. Mastering Carbon Fiber Filament Settings for Perfect Prints

Once your nozzle is sorted, the next critical step is dialing in your carbon fiber filament settings. Unfortunately, we frequently see new users load their default PLA profile and hit “Print.” While that approach works fine for standard plastic, carbon fiber composites behave differently.

Specifically, the carbon fibers conduct heat away from the melt zone more quickly, which means the polymer needs higher temperatures to fully melt and bond between layers. Additionally, the stiffer fiber-laden material benefits from slightly slower print speeds, especially when rendering fine details.

For example, carbon fiber PLA typically requires a nozzle temperature 5–10 °C higher than standard PLA. Skipping that adjustment is the fastest way to end up with parts that delaminate the first time they’re put under load.

Carbon Fiber Filament Print Settings Cheat Sheet

The following settings are based on thousands of prints produced with SSSray carbon fiber filaments and work with 99% of printers on the market:

Material Nozzle Temp Bed Temp Print Speed Cooling Fan
CF-PLA 195–225 °C 60 °C 40–60 mm/s 100%
CF-PETG 240–270 °C 80 °C 30–50 mm/s 50–75%
CF-Nylon 270–300 °C 100 °C+ 25–40 mm/s 0–25%
CF-PEKK 340–380 °C 140 °C+ 20–30 mm/s 0%
Quick tip: If you’re experiencing poor layer adhesion, try increasing your nozzle temperature by 5 °C first. This single adjustment fixes roughly 90% of the adhesion issues we see. For stringing, slow down your retraction speed slightly—the carbon fibers need a fraction more time to stop flowing.

4. Why Drying Carbon Fiber Nylon Filament Is Non-Negotiable

If you’re working exclusively with CF-PLA or CF-PETG, moisture management is relatively forgiving. However, if you’re using carbon fiber nylon filament, drying is absolutely mandatory—no exceptions.

Nylon is hygroscopic, meaning it actively absorbs moisture from the surrounding air. According to a 2026 study published by MDPI, carbon fiber reinforced nylon can absorb up to 2.8% moisture in just two weeks when stored in open air.

The Biggest Myth About Wet Filament

Many users inspect their spool, notice it feels dry to the touch, and conclude that drying is unnecessary. Unfortunately, moisture absorption in nylon occurs at the molecular level—it’s completely invisible.

When wet nylon hits the hot nozzle, the absorbed moisture boils instantly. This creates micro-bubbles that turn into voids inside the printed part, which in turn destroy layer adhesion, introduce stringing and blobbing, weaken structural integrity, and can even clog the nozzle. By the time you can see bubbles in the extruded line, the damage is already done.

Drying Time & Temperature Guide

Material Drying Temp Drying Time Max Moisture Content
CF-PLA 45 °C 2–4 hours < 0.2%
CF-PETG 65 °C 3–5 hours < 0.4%
CF-Nylon 80 °C 4–6 hours < 0.2%
CF-PEKK 120 °C 6–8 hours < 0.1%

At SSSray, we vacuum-seal all of our carbon fiber nylon filament in moisture-proof packaging with desiccant. As a result, freshly opened spools are ready to print immediately. That said, if the package has been open for more than two weeks, you should dry the filament before use—even if it looks and feels perfectly fine.

5. Solving Common Problems When Printing with Carbon Fiber Filament

Even with thorough preparation, many customers encounter a few predictable issues during their first carbon fiber prints. The good news is that none of these are dealbreakers, and most have straightforward solutions once you know what to look for.

Warping & Shrinkage

One of the key advantages of carbon fiber filament is reduced shrinkage, since the fibers physically constrain the polymer matrix. Nevertheless, nylon-based CF filaments can still warp on larger parts.

To mitigate this, use a heated chamber—or at the very least, an enclosed build area with a heated bed. This slows the cooling rate and prevents the differential shrinkage that causes corners to lift. For CF-PLA and CF-PETG, warping is virtually non-existent, so this is rarely a concern.

Layer Adhesion Issues

If your parts are delaminating between layers, the cause is almost always insufficient nozzle temperature. Because carbon fibers conduct heat away from the melt zone quickly, the polymer may not reach full melt temperature at each layer boundary.

The fix is simple: increase your nozzle temperature by 5–10 °C and reduce print speed slightly. Together, these adjustments resolve approximately 90% of layer adhesion problems.

Nozzle Clogging

Clogging typically stems from one of two root causes: printing with un-dried nylon filament, or using a nozzle diameter that’s too small.

Carbon fiber filament requires a 0.4 mm or larger nozzle. Anything smaller—such as 0.2 mm—risks trapping fibers at the orifice, leading to partial or full blockages. To avoid this issue, always use a 0.4 mm+ nozzle and ensure your nylon filament is properly dried before printing.

For more troubleshooting tips, visit our 3D printing filament FAQ page.

6. Filament Storage Guide: How to Store Carbon Fiber Filament for Industrial Use

For industrial teams that stock hundreds of kilograms of filament for months at a time, moisture control is the single most important storage consideration. If humidity compromises your filament before you even load it onto the printer, every downstream step is affected.

Based on our experience supporting large-scale print operations, we recommend three straightforward rules:

  1. Keep storage humidity below 30% RH. This dramatically slows moisture absorption across all filament types.
  2. Vacuum-seal any spools you won’t use within one month. This locks out ambient moisture entirely.
  3. Maintain room temperature below 25 °C. Warmer air holds more moisture, which accelerates absorption.

At SSSray, all of our industrial bulk carbon fiber filament ships in moisture-proof drums with desiccant, enabling storage for 12+ months without degradation. This is particularly valuable for print farms and production facilities that need to maintain large material inventories.

7. Total Cost of Ownership: Is Carbon Fiber Filament Worth the Investment?

Many buyers focus on the per-kilogram price first. Standard PLA runs about $25/kg, while carbon fiber filament ranges from $35–$50/kg. At first glance, the standard material appears cheaper.

However, that comparison misses the bigger picture. When you factor in part lifespan, replacement frequency, lead times, and total production costs, carbon fiber filament consistently delivers a lower total cost of ownership (TCO).

Consider a real-world example: a mid-sized manufacturing shop producing 100 jigs and fixtures per year.

Cost Factor Standard PLA Carbon Fiber PETG Savings
Cost Per Jig $1,200 (machined aluminum) $150 (3D printed) −$1,050
Lead Time Per Jig 14 days 1 day −13 days
Annual Total Cost $120,000 $15,000 −$105,000

That $105,000 annual saving is the number that stops most buyers in their tracks. Even though the filament itself carries a modest premium, the savings in tooling costs and lead time elimination more than compensate. Additionally, these figures don’t include the value of avoided downtime—the two-week wait for machined parts simply disappears.

For most industrial users, the payback period is less than 3 months. That’s the power of printing with carbon fiber filament the right way: it’s not just about stronger parts—it’s about saving your business thousands of dollars every year.

Ready to Test Carbon Fiber Filament in Your Workflow?

Our engineering team can help you select the right formulation—or develop a custom blend for your specific application.

Request Free Samples → Learn About OEM/ODM Services →

Frequently Asked Questions

Do I need a special printer to print with carbon fiber filament?

No—you don’t need an expensive industrial machine. For CF-PLA and CF-PETG, most standard desktop printers work perfectly well, provided you swap in a hardened steel nozzle. The exception is high-temperature materials like CF-Nylon or CF-PEKK, which do require a heated chamber.

How abrasive is carbon fiber filament, really?

The chopped carbon fibers measure approximately 6.5 on the Mohs hardness scale, making them harder than brass, stainless steel, and even some soft steels. This is why they wear out standard nozzles so quickly, and why a hardened steel nozzle is essential.

How do I dry carbon fiber nylon filament properly?

The most reliable method is to use a dedicated filament dryer set to 80 °C for 4–6 hours. While a conventional oven can work in a pinch, a purpose-built dryer provides more consistent and accurate temperature control.

What are the best carbon fiber filament settings for my printer?

Settings vary by material. For CF-PLA, we recommend 195–225 °C nozzle temperature, 60 °C bed, and 40–60 mm/s print speed. CF-PETG performs best at 240–270 °C, 80 °C bed, and 30–50 mm/s. CF-Nylon requires 270–300 °C, 100 °C+ bed, and 25–40 mm/s. For detailed guidance, refer to our full FAQ page.

Can I print carbon fiber filament with a brass nozzle?

While technically possible, it’s not cost-effective. You’ll need to replace the nozzle every 0.5–1 kg, which quickly becomes more expensive than a single $25 hardened steel nozzle. Print quality also degrades progressively as the brass wears.

How should I store carbon fiber filament for industrial use?

For industrial environments, keep filament in moisture-proof containers with desiccant, maintaining humidity below 30% RH. For long-term storage, vacuum-seal any spools that won’t be used within a month. All SSSray bulk filament ships in moisture-proof drums to support storage of 12+ months.

What are the most common problems when printing with carbon fiber filament?

The four most frequent issues are nozzle wear (solved by upgrading to hardened steel), moisture-related defects (solved by drying), layer adhesion failure (solved by increasing nozzle temperature), and warping on nylon-based materials (solved by using an enclosed build chamber). Each has a straightforward fix once identified.

Is carbon fiber filament worth the extra cost for industrial users?

In our experience, absolutely. Although the per-kilogram cost is higher, the savings in tooling, lead time, and part replacement deliver ROI in under 3 months. Most industrial customers save tens of thousands of dollars annually after making the switch.

Conclusion

Printing with carbon fiber filament doesn’t have to be complicated. With the right preparation—upgrading your nozzle, optimizing your settings, drying your nylon filament, and storing materials properly—you can consistently produce high-strength, dimensionally accurate parts that rival machined alternatives.

More importantly, the modest upfront investment in hardware and process adjustments pays for itself within months, not years. Whether you’re prototyping functional components or producing end-use manufacturing aids, carbon fiber filament offers a compelling combination of performance and cost efficiency.

If you’re ready to explore carbon fiber filament for your business, our team at SSSray is here to help. We can recommend the right formulation for your application, ship free samples for in-house testing, or develop a custom OEM/ODM blend tailored to your exact requirements.

Contact Our Team for Free Samples →

References

  1. Wohlers Associates. (2026). Wohlers Report 2026: The State of Additive Manufacturing. 3Dnatives.
  2. Politecnico di Torino. (2025). Recycled milled carbon fibers in fused filament fabrication of composite filaments. Polymer Composites.
  3. MDPI. (2026). High-temperature tensile performance of fused filament fabricated discontinuous carbon fiber-reinforced polyamide. Polymers.
  4. ASTM International. (2024). 2024 Global Additive Manufacturing Industry Survey.
  5. Mordor Intelligence. (2026). 3D Printing Filament Market Size, Share, and Growth Trends 2026–2031.
  6. Plastics Engineering. (2025). Why carbon fiber reinforcement works—or doesn’t—in 3D printing.
  7. Upside Parts. (2025). Nozzle wear: How abrasive filaments affect your printer.
