PVA support filament dissolves in warm water. HIPS filament support requires d-limonene. That single difference in dissolution method determines print temperature compatibility, post-processing infrastructure, per-gram operating cost, and environmental compliance profile—yet most material selection guides stop there. This guide does not.
Whether you operate a print farm, manage an R&D prototyping department, or source materials for contracted B2B production, choosing the wrong soluble support material carries real operational consequences. Specifically, it shows up as failed prints, labor-intensive post-processing, inconsistent surface quality, and supply chain costs that were never modeled accurately. As a result, this guide examines both materials across every decision variable that matters: thermal compatibility, print settings, dissolution efficiency, storage requirements, and total cost of ownership.
The global PVA 3D printing filament market is projected to reach USD 651.94 million by 2034. That growth reflects genuine industrial adoption—not speculation. Consequently, understanding where PVA support filament outperforms HIPS, and where HIPS is simply the only viable option, is now a core procurement competency for any serious FDM operation.
Key Takeaways
- PVA support filament dissolves in warm water and pairs with PLA, PETG, and CPE. It is the right choice when surface finish and post-processing simplicity are priorities—not when you are printing ABS at 250°C.
- HIPS filament support requires d-limonene for dissolution but handles ABS and ASA without thermal degradation during printing.
- PVA support filament absorbs atmospheric moisture rapidly. Above 50% relative humidity, print quality degrades within 24–48 hours. Moreover, once moisture triggers hydrolytic chain degradation, drying cannot fully restore the material.
- PVA prints at 185–215°C at around 30 mm/s. HIPS runs at 230–245°C with speeds up to 80 mm/s. That speed gap directly affects throughput calculations for multi-machine deployments.
- Filament price is the visible cost. In contrast, post-processing—solvent, energy, disposal—typically accounts for 40–60% of true per-gram support material expense.
- BVOH is the emerging alternative worth monitoring: faster dissolution and broader compatibility, though priced at a significant premium over both PVA and HIPS.
- Dual extrusion success depends as much on z-offset calibration and ooze management as on material selection itself.
- Biodegradable PVA support filament is increasingly specified as a formal requirement in EU medical device, educational equipment, and public sector tenders.
Introduction: The Real Cost of the Wrong Support Material
Soluble support materials do not just make complex prints possible. More importantly, they eliminate the labor bottleneck that quietly breaks print farm economics. When an operator spends 25–40 minutes manually prying and sanding supports off a single PETG prototype, the filament cost becomes almost irrelevant. The job is no longer constrained by the printer—instead, it is constrained by the person holding the pliers.
The global 3D printing materials market sits at USD 4.80 billion in 2026 and is projected to reach USD 23.64 billion by 2034. A meaningful portion of that growth, moreover, is driven by manufacturers who have discovered that dissolved supports cost less than labor. Within that shift, the choice between PVA support filament and HIPS filament support is not a minor specification detail. It determines which build materials you can use, what post-processing infrastructure you need, and what your true per-part cost actually is.
The wrong support material shows up in several ways. First, it appears as failed prints. Second, it causes delaminated surfaces from mechanical removal attempts. Third—and most insidiously—it produces parts that look acceptable but carry micro-damage where supports were forced off. None of that appears in a standard materials comparison table, yet all of it affects your operation’s quality output and throughput.
This guide is written for distributors building product portfolios, brand owners specifying materials for contracted production, print farm operators running multi-machine deployments, and industrial users optimizing for throughput and consistency. It covers the technical reality of both materials, the settings that actually work across common platforms, and the cost framework that lets you calculate whether soluble supports make financial sense for your specific operation.
Understanding PVA Support Filament: The Water-Soluble Workhorse
Chemistry and Hydrolysis Grade
Polyvinyl Alcohol—the polymer behind every PVA support filament—is produced by alkaline hydrolysis of polyvinyl acetate (PVAc). This process replaces acetate groups with hydroxyl groups. Those hydroxyl groups are precisely what make PVA water-soluble: they form strong hydrogen bonds with water molecules, allowing the polymer to break down at the molecular level rather than simply swelling or softening on the surface.
The degree of hydrolysis—typically 70–100 mol%—is the specification that most directly affects 3D printing performance. Fully hydrolyzed PVA (98–99 mol%) is more chemically resistant and thermally stable. However, it dissolves slowly and requires higher printing temperatures of 200–230°C. Partially hydrolyzed grades (87–89 mol%), by contrast, dissolve faster and print at lower temperatures of 180–195°C. As a result, partially hydrolyzed variants dominate desktop and light industrial applications. If your supplier does not specify the hydrolysis grade, it is worth asking directly—the difference affects both print behavior and post-processing time in ways that are not recoverable through slicer adjustments.
Mechanically, dry PVA support filament delivers tensile strength around 22 MPa with a tensile modulus of approximately 1.5 GPa. These values are adequate for support structures. However, the material becomes noticeably more brittle as humidity drops. Moisture absorbed from the air acts as a plasticizer—which sounds useful until you realize the same moisture causes steam formation inside the hotend during printing. The line between “PVA is flexible because of moisture” and “PVA is printing badly because of moisture” is narrower than most users expect.
The biodegradability of PVA support filament is genuine and increasingly consequential for procurement. Under appropriate environmental conditions—adequate temperature and microbial activity—PVA degrades through microbial action in soil and water. Furthermore, it does not produce the microplastic fragments associated with conventional polymers. This environmental profile has moved from a marketing talking point to a procurement requirement in certain sectors. Some European medical device OEMs and educational equipment tenders, for instance, now specify eco-friendly PVA biodegradable support material by name in their supplier documentation.
Ideal Applications for PVA Support Filament
PVA support filament’s value is clearest in geometries where mechanical support removal would either damage the part or simply is not physically possible. Deep internal cavities, channels with multiple bends, and overhangs that a breakaway support could not reach without marring the surface beneath—these are the cases where PVA shifts from a nice-to-have to operationally essential.
Complex Geometry Prototyping

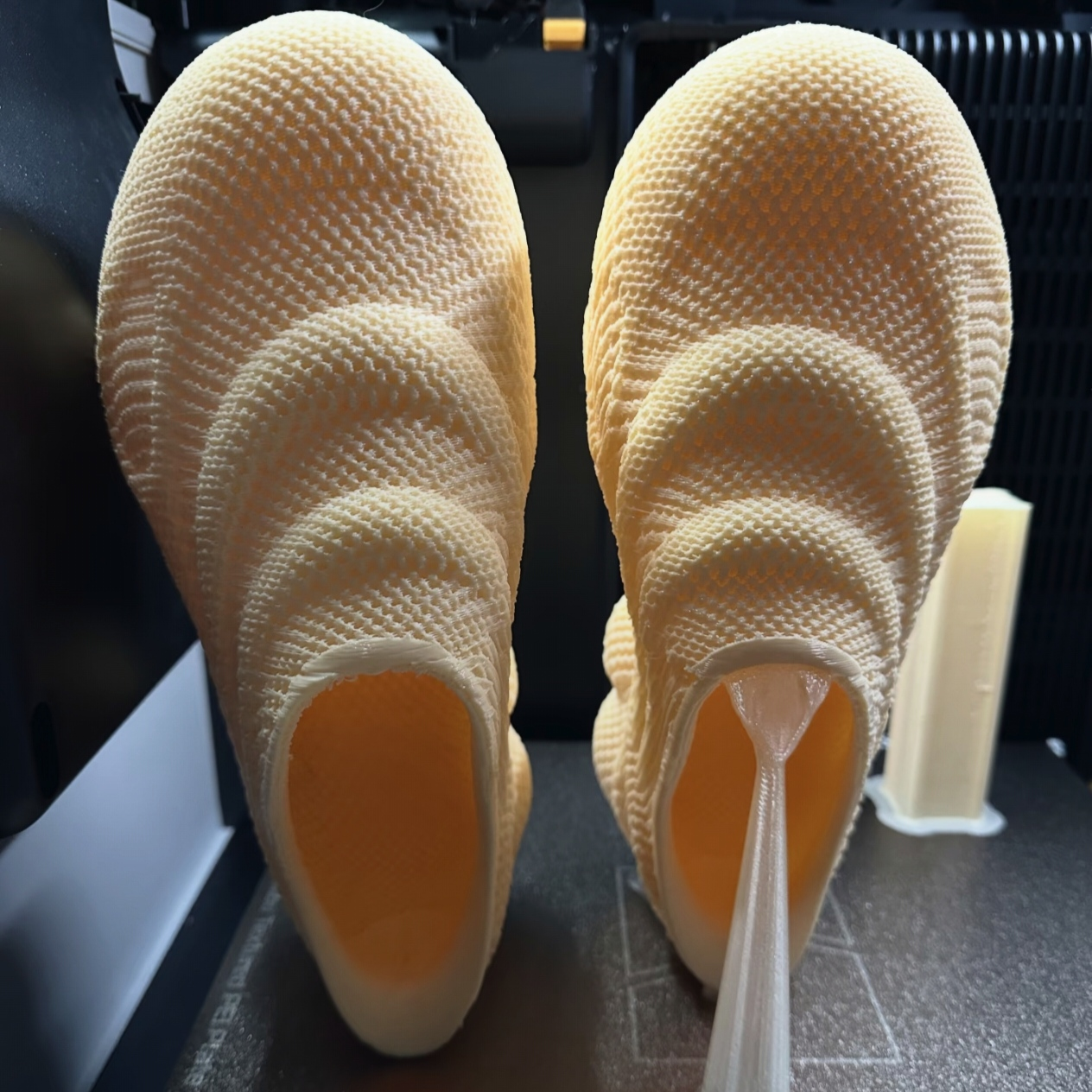

PVA support filament flows into recessed areas and dissolves completely without residue. Consequently, it is the default choice for architectural scale models, biomedical prototypes requiring clean internal surfaces, and casting patterns where surface quality directly affects downstream mold fidelity. No mechanical agitation is required, which eliminates the risk of post-processing damage to thin walls or delicate features.
Multi-Material and Flexible Part Printing
PVA support filament’s compatibility with TPU alongside PLA and PETG is particularly valuable for multi-material assemblies. When designing parts with living hinges, overmolded grips, or integrated seals, PVA supports mean you can print the full assembly in one operation. Printing components separately and joining them, by comparison, typically introduces alignment errors and adhesion uncertainty—two quality risks that dissolved supports eliminate entirely.
Consumer Product Development
Consumer product development favors PVA support filament for a straightforward reason: there is no solvent residue risk. When prototypes will be handled by end users or tested in contexts where chemical contamination matters, water dissolution is genuinely safer. Wastewater disposal is generally straightforward within standard municipal limits, and no chemical safety protocols are required during part handling after dissolution.
Educational and Research Environments
Educational and research environments benefit from both the safety profile and the operational simplicity of PVA support filament. When the people operating printers are students or researchers focused on design challenges, water-based post-processing removes a significant source of error and incident risk. The trade-off—slower print speeds and more demanding storage—is generally acceptable in contexts where repeatability matters more than raw throughput.
Where PVA Has Replaced Manual Removal
In prototyping services where PETG is the primary build material, the shift to PVA support filament for complex prints typically reduces post-processing time by 50–70% for parts with moderate geometric complexity. The break-even point—where PVA’s higher filament cost and slower print speed are offset by labor savings—generally occurs around 20–30 minutes of eliminated manual post-processing per job. Parts requiring less than 10 minutes of manual removal may not justify the switch. Parts requiring 45 minutes or more almost always do.
Limitations and Where PVA Support Filament Fails
PVA support filament has three genuine limitations that no amount of parameter tuning resolves. Understanding them upfront prevents the more expensive mistake of deploying PVA in contexts where it will consistently underperform.
Thermal Incompatibility With Engineering Thermoplastics
PVA’s practical printing range tops out around 215°C. ABS, ASA, and polycarbonate, however, print at 240–265°C. Any PVA support adjacent to these materials will thermally degrade—not merely print poorly, but undergo irreversible chemical breakdown that produces stringing, nozzle contamination, and compromised support geometry. Therefore, if your build material requires a heated bed above 80–90°C or a chamber above 50°C, PVA support filament is not the right choice. That is where HIPS belongs.
Hygroscopic Sensitivity
Hygroscopic sensitivity is a material property, not a handling flaw—but it becomes a costly flaw when storage and workflow protocols do not account for it. PVA support filament exposed to air at 50%+ relative humidity will show printing defects within 24–48 hours. Critically, moisture does not only cause physical problems by generating steam. It also triggers hydrolytic breakdown of the polymer chains themselves. As a result, a spool dried after significant moisture exposure will print better than a wet spool, but it will not print identically to material that was never exposed. For production environments where batch-to-batch consistency is a quality requirement, this distinction matters considerably.
Print Speed Constraints
PVA support filament at 30 mm/s versus PLA at 60–80 mm/s means dual-material jobs with significant support volumes take substantially longer than single-material equivalents. For print farms where machine utilization drives the economics, this speed penalty needs to be explicitly modeled—not assumed away. The labor saving from dissolved supports is real, and so is the throughput reduction from slower support printing. Both figures must appear in your ROI calculation.
On nozzle wear: standard brass nozzles accumulate PVA residue faster than with most build materials, particularly with partially hydrolyzed grades that contain more plasticizer. Hardened steel or ruby nozzles extend service intervals in production settings and should appear as a line item in your total cost of ownership calculation.
Understanding HIPS Filament Support: The Chemical Dissolution Champion
HIPS Material Properties and Chemistry
High Impact Polystyrene (HIPS) is a polystyrene matrix with a dispersed polybutadiene rubber phase. The rubber phase provides toughness without significantly compromising the processing characteristics that make polystyrene easy to extrude. For support material applications, this combination translates to structures that hold their geometry during printing yet remain chemically vulnerable to d-limonene dissolution.
The key specification is the glass transition temperature of approximately 100°C—some 20–25°C higher than PVA’s Tg. This is precisely why HIPS can sit adjacent to ABS printing at 245–260°C without degrading, while PVA cannot. Furthermore, the printing temperatures match directly: HIPS extrudes at 230–245°C, which is compatible with the ABS and ASA build materials it most commonly supports.
HIPS Technical Specifications
Melting Point: 220°C
Glass Transition (Tg): 100°C
Extruder Temperature: 230–245°C
Bed Temperature: 100–115°C
Tensile Strength: 22 MPa
Tensile Modulus: 1.55 GPa
Solubility: D-limonene (citrus-derived solvent)
Density: 1.04 g/cm³
HIPS dissolves in d-limonene because the non-polar monoterpene penetrates and disrupts the polystyrene matrix through polymer chain attack. This mechanism differs fundamentally from PVA’s water dissolution—it is chemical attack rather than hydrogen bond competition. Consequently, temperature and solvent freshness matter more for HIPS dissolution than agitation alone. A saturated limonene bath at 75°C will dissolve HIPS slowly. Fresh limonene at the same temperature, by contrast, works substantially faster.
One property worth noting before deployment: HIPS produces a mild styrene odor during printing. In enclosed, ventilated spaces this is manageable. In open-plan offices or shared workspaces, however, it becomes a practical compliance problem. Therefore, factor ventilation requirements into your facility assessment before committing HIPS to a new production environment.
Industrial Applications for HIPS Support Material
HIPS filament support exists for one specific situation in FDM printing: you need to print ABS, ASA, or another high-temperature engineering thermoplastic with complex supports, and PVA support filament will thermally degrade before it can do the job. In that context, HIPS is not a compromise—it is simply the correct material.
Automotive and Aerospace Functional Prototyping
Bracket assemblies and housing prototypes that will undergo thermal cycling tests need ABS or ASA to behave realistically under test conditions. HIPS supports, therefore, allow single-piece designs with internal rib networks and mounting features that would otherwise require breakaway support and surface repair. In most cases, the dissolved finish is clean enough for paint adhesion testing without additional surface preparation.
Electronics Housings and Enclosures
ABS’s combination of impact resistance, dielectric properties, and surface finish for painting or plating makes it the default material for consumer electronics enclosures and power tool housings. HIPS filament support dissolves cleanly from thin internal ribs, cable routing channels, and snap-fit features that are routinely inaccessible to manual removal tools. This is particularly important when internal surface condition affects assembly fit or electrical clearance specifications.
ASA Applications for Outdoor and UV-Exposed Parts
ASA is increasingly displacing ABS in exterior applications because of its superior UV resistance. Automotive trim, marine components, and outdoor signage all benefit from ASA’s weathering performance. HIPS is the compatible support for ASA, and the dissolution process is identical to ABS applications. Accordingly, if your customer base includes any outdoor product development, HIPS capability is not optional—it is a baseline requirement.
Addressing a Common Misconception
Some users assume HIPS and ABS will adhere too strongly during printing, making chemical dissolution impractical. In practice, HIPS and ABS have sufficient inter-material adhesion for structural support but sufficiently different solvent profiles that d-limonene attacks HIPS without meaningfully affecting ABS. Moreover, the air gap setting in your slicer—0.15–0.2 mm recommended—further reduces adhesion at the support-to-model interface. Clean separation is routine with correct parameters.
Mastering D-Limonene Dissolution for HIPS Supports
The core variable in HIPS post-processing is solvent temperature. At room temperature (20–25°C), HIPS dissolution proceeds slowly—12 to 24 hours for moderate support volumes is typical. However, raising the limonene bath to 60–75°C cuts this to 4–8 hours for most configurations, which is the practical production range. Above 85°C, surface softening on ABS parts becomes a risk, so treat that as the operational ceiling.
Agitation and Solvent Circulation
Agitation helps, but it is secondary to temperature. A magnetic stir bar or recirculating pump in a temperature-controlled bath gives consistent results without the part damage risk that high-energy ultrasonic cleaning can introduce at elevated temperatures. For production batches, a dedicated heated tank with a submersible heater and thermostat is more reliable than improvised water-bath setups—and it pays for itself quickly in reduced operator monitoring time.
Solvent Management and Replacement
Solvent management is the operational variable that most operators underestimate. Fresh d-limonene at approximately $15–30 per liter can be reused across multiple dissolution cycles. However, solvent saturation reduces effectiveness before it becomes visually obvious. A reliable heuristic: when dissolution time for a standard part configuration increases by more than 50% compared to fresh solvent, replace or filter the bath. Tracking solvent usage per batch, moreover, allows you to build this cost into your consumables model rather than discovering it through failed post-processing runs.
Safety and Disposal: What You Actually Need to Know
D-limonene is derived from citrus and is generally recognized as safe in food contexts. However, that does not make it unrestricted in industrial settings. Use chemical-resistant gloves—nitrile or neoprene; latex is insufficient—and work in ventilated areas away from heat sources and oxidizers. The primary risk with repeated exposure is skin sensitization, not acute toxicity. For disposal, used limonene saturated with dissolved HIPS falls under mixed plastic/solvent waste in most jurisdictions. Document your disposal chain for environmental compliance audits. Some specialty recyclers, furthermore, accept it for recovery processing.
PVA vs HIPS Support Filament: Side-by-Side Comparison
The tables below consolidate the key decision variables across both materials. The short version: if your build material is PLA, PETG, or CPE, use PVA support filament. If it is ABS or ASA, use HIPS. Everything else in these tables—cost, infrastructure, shelf life, environmental profile—determines whether that primary compatibility choice is financially sustainable at your operational scale and what supporting infrastructure you need to budget for accordingly.
| Property | PVA Support Filament | HIPS Support Filament |
|---|---|---|
| Chemical Composition | Polyvinyl Alcohol (hydrolyzed PVAc) | Polystyrene + Polybutadiene copolymer |
| Melting Point | 160–230°C (grade-dependent) | 220°C |
| Glass Transition (Tg) | 60–85°C | 100°C |
| Tensile Strength | 22 MPa | 22 MPa |
| Tensile Modulus | 1.5 GPa | 1.55 GPa |
| Water Solubility | Fully soluble in warm water | Not water soluble |
| Chemical Solubility | Limited (some acids/bases) | Dissolves in d-limonene |
| Biodegradability | Yes—under appropriate conditions | No—petroleum-based polymer |
| Toxicity Profile | Non-toxic; food-safe grades available | Low acute toxicity; styrene vapors require ventilation |
| Odor During Printing | Odorless | Mild styrene odor—ventilation required |
| Parameter | PVA Support Filament | HIPS Support Filament |
|---|---|---|
| Extruder Temperature | 185–215°C | 230–245°C |
| Bed Temperature | 45–60°C | 100–115°C |
| Print Speed | 25–40 mm/s (typical: ~30 mm/s) | 40–80 mm/s |
| Part Cooling Fan | Yes—reduces stringing | Off—causes warping and delamination |
| Heated Chamber | Not required | Strongly recommended for parts over 100 mm |
| Enclosure / Ventilation | Standard ventilation adequate | Enclosure preferred; HEPA filter recommended |
| Build Surface | Painter’s tape, PEI sheet, glass | Kapton tape, ABS slurry on glass, PEI |
| Compatible Build Materials | PLA, PETG, CPE, TPU, Nylon | ABS, ASA, PC, high-temp Nylon grades |
| Nozzle Material | Hardened steel preferred | Standard brass adequate |
| Factor | PVA Support Filament | HIPS Support Filament |
|---|---|---|
| Dissolution Method | Warm water bath (40–60°C) | D-limonene bath (60–85°C) |
| Typical Dissolution Time | 2–12 hours (geometry-dependent) | 4–24 hours (geometry- and solvent-freshness-dependent) |
| Post-Processing Cost per Gram | $0.01–0.03 (water and energy) | $0.05–0.15 (solvent purchase and disposal) |
| Filament Price (500g spool) | $18–185 (avg. ~$50) | $13–38 (avg. ~$25) |
| Storage Humidity Requirement | Below 50% RH (ideally below 20% RH) | Standard storage—no desiccant required |
| Pre-Print Drying | Required if moisture absorbed (8–12h at 50–80°C) | Not typically required |
| Shelf Life (sealed) | 12–24 months | 24+ months |
| Environmental Impact | Low—biodegradable, water-based disposal | Moderate—petroleum-based; solvent waste management required |
| Scalability | Straightforward batch water dissolution | Scalable with controlled chemical processing infrastructure |
Optimized Print Settings for Dual Extrusion Success
Most print quality problems with soluble supports are not caused by the support material itself. Instead, they trace back to z-offset errors, ooze during tool changes, or temperature differential effects between adjacent nozzles. Sorting these foundational issues first makes material-specific tuning far more effective.
Dual Extrusion Fundamentals
Z-Offset Calibration
Z-offset calibration is the single most impactful variable in dual extrusion setup. A 0.05 mm difference between nozzle heights causes poor layer adhesion, inconsistent extrusion width, or print failure. It is also printer-specific—generic settings do not transfer reliably. Consequently, calibrate with the actual materials you will be printing, because different filament diameters and thermal expansion coefficients mean the calibration you ran with PLA may not hold when you switch to PETG or HIPS.
Ooze Management Strategy
Ooze management matters more with soluble supports than in standard dual extrusion, because ooze from the support nozzle lands on model surfaces that will be visible after dissolution. Therefore, configure prime towers or ooze shields, and enable wipe and retract sequences between tool changes. For PVA support filament specifically, this prevents the yellow-brown contamination spots that appear when PVA ooze contacts a hot ABS or PETG surface.
Temperature Differential Management
When two nozzles sit close together, the hotter one affects the cooler material’s behavior. With PVA support filament and PLA, the 30–50°C differential requires careful nozzle positioning to prevent PVA softening from the PLA nozzle’s radiated heat during idle periods. With HIPS and ABS, however, the temperatures are close enough that thermal cross-talk is minimal—though IDEX configurations eliminate this concern entirely for high-volume operations.
PVA Support Filament: Print Settings by Platform
| Parameter | Prusa MK3S+/MK4 | Bambu Lab X1/P1 | UltiMaker S5/S7 | Generic FDM Reference |
|---|---|---|---|---|
| Nozzle Temperature | 210–215°C | 240–250°C | 215–220°C | 185–215°C |
| Bed Temperature | 50–60°C | 55–65°C | 50–55°C | 45–60°C |
| Print Speed | 25–35 mm/s | 30–40 mm/s | 30–35 mm/s | 25–40 mm/s |
| Layer Height | 0.2 mm | 0.2 mm | 0.2 mm | 0.15–0.25 mm |
| Cooling Fan | 50–100% | 50–100% | 50–100% | 50–100% |
| Interface Layers | 3–4 layers | 3–4 layers | 3–4 layers | 3–5 layers |
| Support Air Gap | 0.15 mm top / 0 mm bottom | 0.15 mm top / 0 mm bottom | 0.15 mm top / 0 mm bottom | 0.15 mm top / 0 mm bottom |
Note on Bambu Lab temperatures: the X1 and P1 series report nozzle temperature at the heater block rather than at the tip, and typically display values 20–30°C higher than other platforms for equivalent melt performance. Therefore, do not compare Bambu temperature settings directly to Prusa or UltiMaker values without accounting for this platform-specific calibration difference.
Bambu Lab AMS: Humidity Monitoring in Practice
The AMS humidity sensor measures ambient humidity inside the AMS unit—not the actual moisture content of the filament. Consequently, for PVA support filament that has already been exposed to high humidity, the AMS reading may normalize while the filament remains damaged. Use the AMS alert as a prevention signal, not a quality confirmation. If you load PVA without knowing its storage history, run a short test print and check for steam bubbles in the extrusion before committing to a full production job.
HIPS Filament Support: Print Settings by Platform
| Parameter | Prusa MK3S+/MK4 | Bambu Lab X1/P1 | UltiMaker S5/S7 | Generic FDM Reference |
|---|---|---|---|---|
| Nozzle Temperature | 235–245°C | 260–275°C | 235–250°C | 230–245°C |
| Bed Temperature | 100–115°C | 100–110°C | 95–105°C | 100–115°C |
| Print Speed | 50–70 mm/s | 60–80 mm/s | 50–70 mm/s | 40–80 mm/s |
| Layer Height | 0.2 mm | 0.2 mm | 0.2 mm | 0.15–0.25 mm |
| Cooling Fan | 0% — off | 0–25% maximum | 0% — off | 0–25% |
| Chamber Temperature | Enclosure + ambient +5–10°C | Maintained (heated chamber) | Controlled environment | Heated enclosure strongly recommended |
| Interface Layers | 3–4 layers | 3–4 layers | 3–4 layers | 3–5 layers |
| Support Air Gap | 0.2 mm top / 0.1 mm bottom | 0.15 mm top / 0.1 mm bottom | 0.2 mm top / 0.1 mm bottom | 0.15–0.2 mm top |
HIPS First Layer Adhesion
If your build plate does not have a built-in adhesive coating, apply ABS slurry—ABS dissolved in acetone—before printing HIPS. This provides a chemically bonded interface that resists the warping and corner lifting common with cold first layers. Refresh the slurry every 3–5 prints or when the surface appears depleted. Do not substitute PVA glue stick here—it does not provide the same chemical compatibility and will not hold HIPS reliably at 100–115°C bed temperatures.
Storage and Handling Best Practices
PVA Support Filament: Moisture Management
PVA moisture degradation has two distinct stages, and they are not equivalent. In the first stage—moderate moisture absorption—the filament prints with bubbles, inconsistent extrusion, and stringing, but the underlying polymer remains intact. Dry it properly and it recovers. In the second stage—prolonged high-humidity exposure—moisture triggers hydrolytic chain scission in the polymer itself. Consequently, drying will improve print behavior marginally, but the molecular weight distribution has changed permanently. You will see this as reduced tensile strength in support structures, inconsistent dissolution behavior, and batch-to-batch variability that does not respond to parameter adjustments.
Practical Humidity Thresholds
The practical implication is that moisture management must be treated as prevention, not remediation. PVA support filament exposed to tropical conditions—70%+ RH—without desiccant can cross from stage one into stage two in under 12 hours. In temperate climates at 50–60% RH, you typically have 24–48 hours of safe open exposure before meaningful degradation begins. These thresholds should inform how you design your production workflow, not just your storage cabinet.
PVA Storage Specifications
Temperature: 0–30°C (optimal: 15–25°C)
Relative Humidity: Below 50% RH (optimal: below 20% RH)
Container: Airtight with indicating silica gel desiccant
Recovery Drying: 50–80°C for 8–12 hours—effective for stage-one moisture; limited for stage-two degradation
Maximum Continuous Open Exposure: Under 4 hours in controlled environments; less in humid climates
Production-Scale Storage Infrastructure
For production environments, the investment that consistently delivers results is a dedicated filament dryer running continuously for active PVA spools, combined with vacuum-sealed storage with indicating desiccant for inventory. Additionally, implement FIFO rotation: date every incoming spool and target depletion within 12 months of receipt. Opened spools in production should be consumed within 2–4 weeks in most climates, or returned to sealed storage with fresh desiccant between jobs.
HIPS Filament Support: Storage Requirements
HIPS is forgiving by comparison to PVA. It absorbs minimal atmospheric moisture, maintains printability after extended ambient storage, and does not require desiccant under normal conditions. The practical requirements are physical protection from UV exposure—sustained direct sunlight causes surface yellowing and brittleness—temperature stability above 0°C to prevent condensation, and protection from crushing or spool deformation.
The 24+ month sealed shelf life makes HIPS well suited to volume procurement strategies that would not be viable with PVA’s 12–24 month window. As a result, distributors can take advantage of price breaks on bulk orders without the inventory management complexity that PVA hygroscopic sensitivity introduces. For PVA HIPS wholesale bulk order procurement, moreover, establish supplier relationships that include material traceability documentation and consistent batch specifications—particularly for PVA, where hydrolysis grade variation between batches creates quality inconsistency that is difficult to diagnose without supplier-level data.
Troubleshooting Common Issues with Soluble Support Materials
Most soluble support failures fall into one of three categories: material condition issues driven by storage problems, parameter issues where settings do not match the material or platform, and post-processing issues where dissolution conditions are inadequate. For root cause analysis, start by ruling out material condition—particularly with PVA support filament—before adjusting print parameters. Changing settings on degraded material produces inconsistent results and masks the underlying problem.
PVA Support Filament: Troubleshooting Guide
| Problem | Likely Cause | Solution |
|---|---|---|
| Steam or bubbles in extrusion | Moisture absorbed during storage or open-air loading | Dry at 50–80°C for 8–12 hours. Do not continue printing wet PVA—it accelerates nozzle clogging and worsens degradation |
| Stringing between support sections | Insufficient retraction; temperature too high for the hydrolysis grade | Increase retraction to 3–5 mm; reduce temperature by 5°C incrementally; enable wipe on tool change |
| Nozzle clogging mid-print | Moisture-triggered degradation product accumulation; thermal degradation above safe temperature | Dry filament thoroughly first; verify nozzle temperature is not above 220°C; switch to hardened nozzle for production runs |
| Poor inter-layer adhesion or delamination | Temperature too low; cooling fan too aggressive | Increase temperature by 5°C; reduce fan to 50%; verify z-offset has not drifted since last calibration |
| Brittle, crumbling support structures | Moisture degradation or over-drying above 80°C | If over-dried: lower drying temperature. If moisture-degraded: replace spool—drying will not fully restore severely degraded material |
| Yellowing or browning of material | Thermal degradation from excessive nozzle temperature | Reduce temperature; increase print speed to reduce dwell time in hotend; check for a partial blockage causing pressure backup |
| Supports fusing to model surface | Insufficient air gap; too many interface layers | Increase top air gap to 0.15–0.2 mm; reduce interface layers to 2; verify the air gap applies specifically to the support-to-model boundary |
| Incomplete dissolution after soaking | Water temperature too low; dense support geometry; moisture-degraded material with reduced solubility | Use 40–60°C water with gentle agitation; break apart large support masses before soaking. If material was visibly degraded before printing, extended soak time will not produce complete dissolution |
HIPS Filament Support: Troubleshooting Guide
| Problem | Likely Cause | Solution |
|---|---|---|
| Slow or incomplete dissolution in limonene | Saturated solvent; bath temperature too low; very thick support sections | Replace or filter solvent; heat bath to 60–75°C; pre-break large support structures before immersion |
| Film or residue on model surface | Saturated solvent leaving dissolved HIPS residue as it dries; insufficient final rinse | Final rinse in fresh limonene; follow with warm water wash; ensure complete air drying before surface inspection |
| Corner lifting or warping during print | Insufficient first layer adhesion; drafts reaching the bed; bed temperature inconsistency | Apply ABS slurry; enclose the printer; verify bed temperature stability across the full surface—not just the center probe point |
| Stringing between support columns | Excessive temperature; insufficient retraction | Reduce temperature by 5°C; increase retraction; enable ooze shield; verify travel moves cross the prime tower before reaching the model |
| Layer separation or structural weakness | Temperature too low for inter-layer bonding; layer height too large | Increase temperature by 5°C; reduce layer height to 0.15 mm; reduce print speed to allow longer thermal contact time |
| HIPS adhering too strongly to ABS model | Air gap set to zero or applied to wrong interface layer | Verify 0.15–0.2 mm top air gap is applied at the support-to-model interface in slicer settings—not the global support gap |
| Strong styrene odor during printing | Inadequate room ventilation; temperature running above recommended range | Improve air exchange; add HEPA/activated carbon filter to enclosure exhaust; verify temperature is not running more than 10°C above the recommended ceiling |
Cost Analysis and ROI for B2B Procurement
Filament sticker price is typically 40–60% of true support material cost in production environments. The remainder consists of post-processing, consumables, storage infrastructure, and waste. Getting these numbers right before making procurement decisions prevents the common outcome of switching to soluble supports and discovering the economics do not work as expected—not because the technology is wrong, but because the cost model was incomplete.
Direct Material and Post-Processing Costs
Quality industrial-grade PVA support filament runs $35–65/kg. HIPS, by contrast, runs $25–45/kg. The PVA premium is real and at high support volumes it is material. Volume procurement—typically starting at 10 kg orders—reduces both by 15–30% depending on supplier and order frequency.
PVA’s water dissolution costs approximately $0.01–0.03 per gram of support in energy and water. HIPS d-limonene at $15–30/liter, reused 3–5 cycles before replacement, works out to $0.05–0.15 per gram of support dissolved. Consequently, for a job using 50 g of support material, that is $0.50–1.50 for PVA versus $2.50–7.50 for HIPS—a meaningful difference at scale that rarely appears in initial procurement analysis.
Infrastructure, Waste, and Labor Savings
PVA support filament requires active drying equipment and sealed storage. A baseline setup—one filament dryer plus desiccant storage containers—runs $150–400. HIPS, on the other hand, requires a temperature-controlled limonene tank and appropriate waste storage, which costs $200–600 depending on tank capacity and ventilation requirements.
Operations without systematic storage protocols typically run 5–10% waste rates from material-related failures. Operations with proper protocols, however, run under 2%. At 100 kg/month of support material consumption, that difference represents 3–8 kg of wasted material monthly—plus the downstream job and delivery impacts that compound the direct material cost.
Labor savings from dissolved supports are usually the dominant factor in the ROI calculation. Manual support removal typically takes 15–45 minutes per part depending on geometric complexity. At $25–50/hour fully loaded labor cost, a 30-minute manual operation costs $12.50–25.00. PVA support material for a comparable job typically costs $4–8. Therefore, the economics favor soluble supports on almost every complex-geometry job. The question is whether your specific part mix has enough complex geometry to justify the infrastructure investment.
Breakeven Analysis Framework
Monthly labor saving = (average manual post-processing minutes per job) × (jobs per month) × (labor rate per minute)
Monthly added material cost = (support volume per job in grams) × (price delta between soluble and breakaway supports) × (jobs per month)
Infrastructure payback period = (total infrastructure investment) ÷ (monthly labor saving − monthly added material cost)
In most production prototyping contexts, payback periods of 3–8 months are typical for operations running five or more complex-geometry jobs per day.
At SSSray, our OEM/ODM filament manufacturing capability allows customized formulations for specific application requirements—including hydrolysis grade specification for PVA support filament and additive packages for HIPS that optimize dissolution rate or surface compatibility with particular build materials. Contact our technical team to discuss volume procurement structures and batch specification requirements for your operation.
Frequently Asked Questions
What is the practical difference between PVA support filament and HIPS—and how do I choose?
The primary decision variable is build material compatibility, not personal preference. PVA support filament dissolves in warm water and works with PLA, PETG, CPE, and TPU. HIPS filament support, by contrast, requires d-limonene but handles ABS, ASA, and high-temperature engineering materials without thermal degradation during printing. Most professional operations maintain both capabilities rather than forcing one material to serve both contexts, because the compatibility mismatch between PVA and ABS creates quality problems that no amount of parameter tuning resolves. Secondary decision variables—post-processing cost, storage requirements, environmental profile—matter for operations running at scale.
How do I store PVA support filament to prevent moisture damage?
Keep opened PVA support filament below 50% relative humidity at all times—ideally below 20% RH—in airtight containers with indicating silica gel desiccant. If you are in a humid climate, assume any open-air exposure beyond 2–4 hours puts the material at risk. Before printing PVA that has been stored without desiccant, dry it at 50–80°C for 8–12 hours. Critically, drying recovers stage-one moisture absorption, but prolonged humidity exposure that has triggered hydrolytic polymer chain degradation is only partially reversible. When in doubt about old stock, run a short calibration print before committing to a production job.
Can PVA support filament be used with PETG?
Yes. PVA support filament is compatible with PETG and works well for complex geometries where manual support removal would damage the part. PETG has slightly more adhesion affinity to PVA than PLA does, which means the air gap setting becomes more critical—use 0.15–0.2 mm at the top interface and verify this is applied specifically to the PETG-to-PVA boundary in your slicer. Dissolution is clean with warm water, and the surface finish after dissolution is typically better than what mechanical removal achieves on PETG.
How long does HIPS filament support take to dissolve in d-limonene?
At room temperature, expect 12–24 hours for moderate support volumes. Raising the limonene to 60–75°C, however, cuts this to 4–8 hours—temperature is the dominant variable, more impactful than agitation alone. Gentle mechanical agitation helps by keeping fresh solvent in contact with the dissolving surface. Breaking apart large, dense support sections before immersion increases contact surface area and noticeably reduces total soak time. Furthermore, when dissolution time increases by 50% or more compared to fresh solvent, replace the bath to avoid residue on finished parts.
Why is my PVA support filament not dissolving completely after a long soak?
Three causes, in order of frequency: (1) Water temperature too low—PVA support filament requires 40–60°C, not room temperature water. (2) Material was moisture-degraded before printing—hydrolytic chain scission changes the polymer’s solubility profile, and extended soak time will not compensate. (3) Support geometry is too dense for water to penetrate—break apart large sections before soaking and add gentle agitation. If moisture degradation is the root cause, the correct fix is better storage protocols going forward and replacing the compromised stock.
Is PVA support filament actually biodegradable?
Yes. PVA support filament biodegrades through microbial action under appropriate conditions over weeks to months—it is not a marketing claim. It does not produce the persistent microplastics associated with petroleum-based polymers. Municipal wastewater treatment handles PVA in the diluted concentrations produced by typical batch dissolution. Furthermore, in some European medical device, educational equipment, and public sector tenders, eco-friendly PVA biodegradable support material is now a documented specification requirement rather than simply a preference.
What printer configuration works best for dual extrusion with PVA support filament?
Key hardware requirements are independent temperature control per extruder, precise z-offset calibration, and effective ooze management via prime tower or ooze shield. Effective platforms include Prusa MK3S+/MK4 with MMU3, Bambu Lab X1/P1 series with AMS, and UltiMaker S5/S7. For industrial applications, IDEX configurations allow the idle extruder to park and cool independently—relevant for HIPS and ABS applications where thermal cross-talk between closely spaced nozzles at similar temperatures can cause oozing from the inactive tool. For further specifications, visit our 3D printing filament FAQ.
How do PVA support filament and HIPS compare in total production cost per job?
HIPS costs less per kilogram—$25–45/kg versus $35–65/kg for PVA support filament—but d-limonene post-processing adds $0.05–0.15 per gram dissolved, compared to $0.01–0.03/gram for PVA water dissolution. On a 50-gram support job, total costs are comparable: approximately $2.50–5.00 for PVA versus $2.75–5.75 for HIPS. Therefore, build material compatibility, not gram-level cost, should drive the decision. At very high support volumes, HIPS operations face meaningfully higher solvent operating costs that volume procurement addresses only partially.
Conclusion and Decision Framework
The choice between PVA support filament and HIPS is, at its core, determined by one question: what material are you printing the actual part from? If it is PLA, PETG, or CPE, use PVA support filament. If it is ABS or ASA, use HIPS. That compatibility rule is not flexible—running PVA at ABS temperatures produces thermal degradation, not functional supports. Start there, and the rest of the decision becomes considerably simpler.
Within that primary constraint, the secondary decisions matter for operations at scale. PVA support filament’s post-processing simplicity and environmental credentials justify its higher per-gram cost in most prototyping and consumer product contexts. HIPS’s storage simplicity and lower solvent cost at moderate volumes, on the other hand, make it the more manageable option for engineering thermoplastic workflows—provided you have or can build the limonene processing infrastructure.
What both materials share is a fundamental economic logic: they replace labor with material and infrastructure. That trade-off works when your parts have sufficient geometric complexity to make manual support removal slow, damaging, or unreliable. For parts where breakaway supports come off cleanly in two minutes, the investment does not pay back. For parts where an operator spends 30–45 minutes on post-processing and still produces surface quality below specification, however, the economics of soluble support material 3D printing are essentially unassailable.
Looking ahead, BVOH is worth monitoring as the next-generation water-soluble alternative—faster dissolution and broader material compatibility than PVA support filament, though current pricing limits adoption to applications where those advantages justify the premium. Watch this space through 2026 and 2027 as pricing normalizes with broader manufacturing adoption.
If you are evaluating soluble support integration for your specific operation, our technical team at SSSray can work through material selection, parameter recommendations, and procurement structure that fits your build material mix, production volumes, and infrastructure constraints. Get in touch with our team or learn more about SSSray to start the conversation.
References and Further Reading
- Precedence Research. (2024). PVA 3D Printing Filament Market Size, Growth Report 2025–2034. precedenceresearch.com
- QYR Analytics. (2025). Global PVA 3D Printing Filament Market Analysis 2025–2032. qyresearch.com
- Fortune Business Insights. (2026). 3D Printing Materials Market Size, Share & Industry Trends 2026–2034. fortunebusinessinsights.com
- MarketsandMarkets. (2025). 3D Printing Materials Market Report 2025–2030. marketsandmarkets.com
- 3DNatives. (2024). PVA vs HIPS: Choosing the Right 3D Printing Support Material. 3dnatives.com
- Simplify3D. (2024). Ultimate Materials Guide: Tips for 3D Printing with HIPS. simplify3d.com
- Xometry. (2024). All About HIPS 3D Printing Filament. xometry.com
- Bambu Lab Wiki. (2024). PVA Printing Guide. wiki.bambulab.com
- Prusa Knowledge Base. (2024). HIPS — Support Material Information. help.prusa3d.com
- Shop3D.ca. (2024). BVOH vs. PVA: Which is Better for Water-Soluble Supports? shop3d.ca
- JLC3DP. (2024). Dissolvable 3D Printing Filament: Ultimate Guide & Best Uses. jlc3dp.com
- MIT CSAIL. (2024). 3D Printing Dissolvable Support Material for Time-Dependent Applications. hcie.csail.mit.edu
- Wiley Online Library. (2021). A Method for Manufacturing Flexible Microfluidic Chip Based on 3D Printing. International Journal of Advanced Manufacturing Technology. onlinelibrary.wiley.com
